How It Works
The i100 EBL is connected to mains power through its 18V power supply, which keeps the battery charged.
When the mains power fails, the unit picks it up straight away and switches the lights on.
When the power comes back, the battery recharges and the system is ready for the next outage.

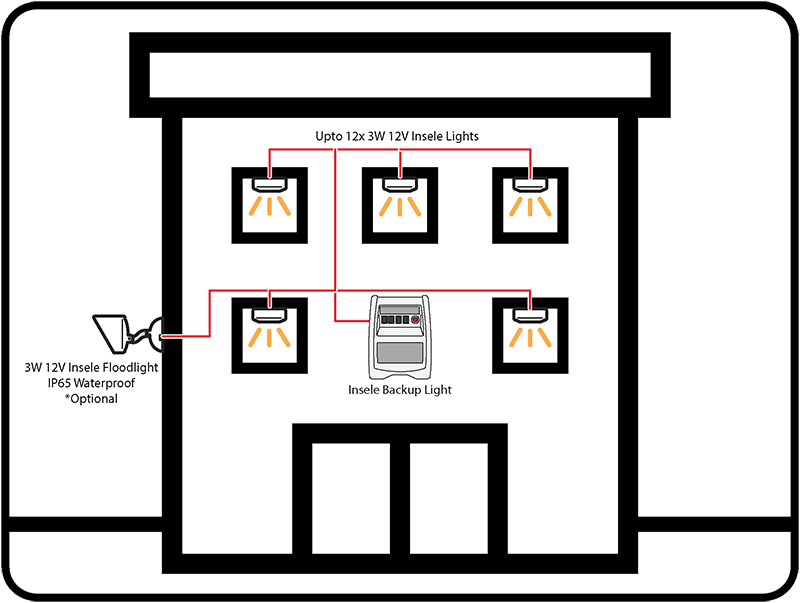

Lights
One unit can run up to 12 Insele LED lights, three on each output. The lights come in different fittings to suit the building. Each light uses 0.6W on dim and 3.5W on full.
Specifications
| Battery | 12V 8Ah lithium (LiPo) |
|---|---|
| Power supply | 18V mains power supply (no solar panel) |
| Lights | up to 12 LED lights (3 per output), various fittings |
| Light power | 0.6W dim, 3.5W full |
| USB | 2 ports, 2A total (1 x 2A or 2 x 1A) |
| Switch-on | automatic when mains power fails |
| Backup time | 8+ hours |
| Charge time | 3.5 hours |
| Unit size | 170 x 110 x 240mm |
| Weight | 6.4kg |
| Warranty | 12 months from Microtronix Manufacturing. The battery is covered by the supplier's warranty. |
i100 EBL Questions
Does the i100 EBL need solar panels?
No. It charges from the mains through its 18V power supply, so it’s ready whenever the power fails.
How does it switch on by itself?
The unit checks for power from its power supply all the time. As soon as that power stops, it switches the connected lights on from the battery.
How long will the lights stay on?
8 hours or more. The exact time depends on how many lights are connected and the brightness setting.
How many lights can one unit run?
Up to 12, with three lights on each output.
Can it charge phones during a power cut?
Yes. It has two USB ports that share 2A.
