What’s In The Box

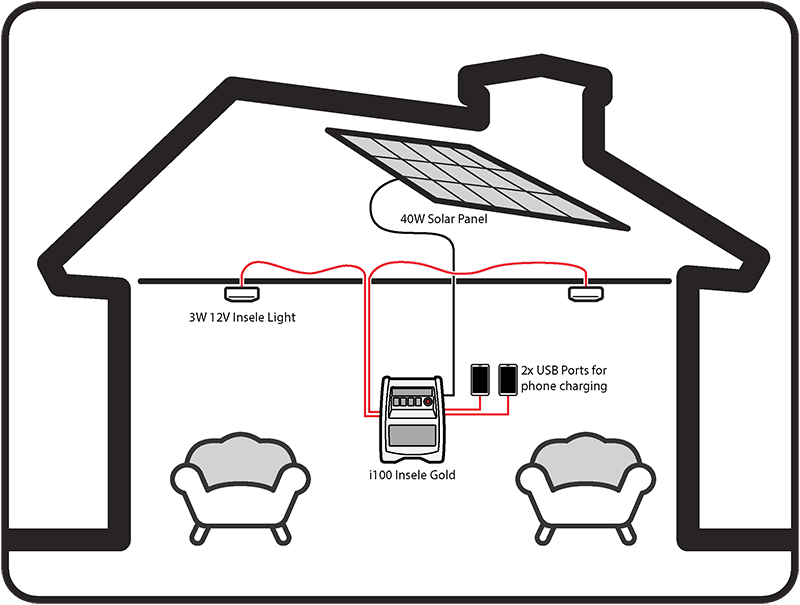

The standard i100 (2xWM) comes with:
The i100 unit with a built-in 8Ah lithium (LiPo) battery
A 40W solar panel
Two wall-mounted LED lights
The unit can run up to four lights, so you can add more later.
Lights And Charging
Each LED light has two brightness settings. It uses 0.6W on dim and 3.5W on full. To change the setting, flick the light’s switch off and on again. Dim mode is useful at night when you want the battery to last longer.

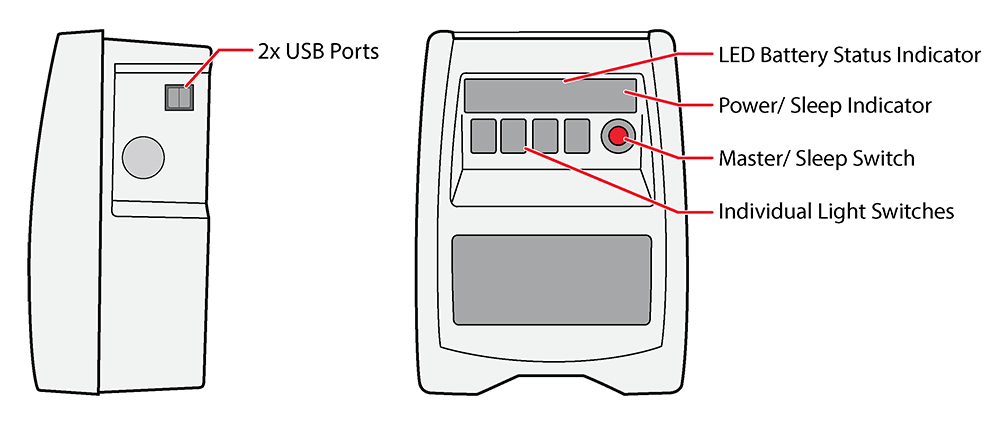

The two USB ports share 2A, so you can charge one device at 2A or two at 1A each. That’s enough for most phones and tablets.
If there’s no sun for a few days, the unit can also be charged from an 18 to 20V 2A mains adapter, which we supply. It’s the same adapter that comes with the i100 EBL.
i100 Range Versions

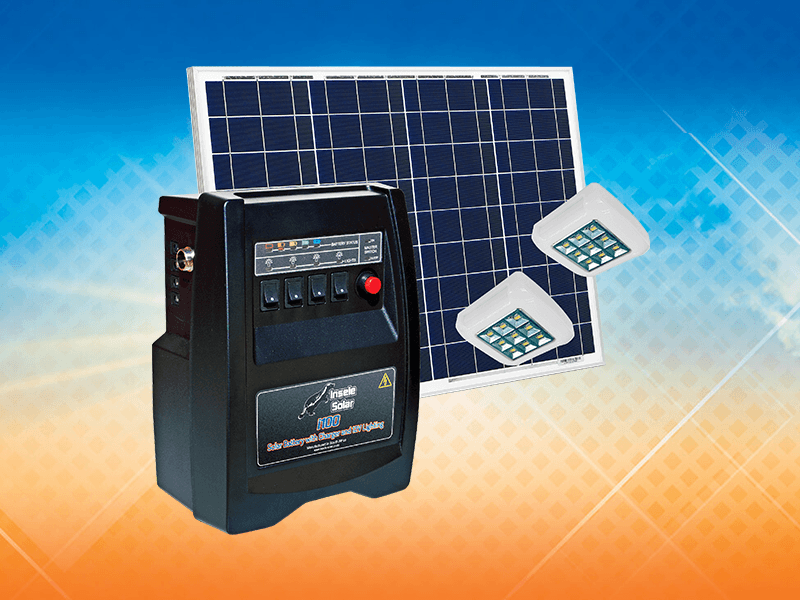

i100 2XWM
Two wall-mounted lights and two USB ports.

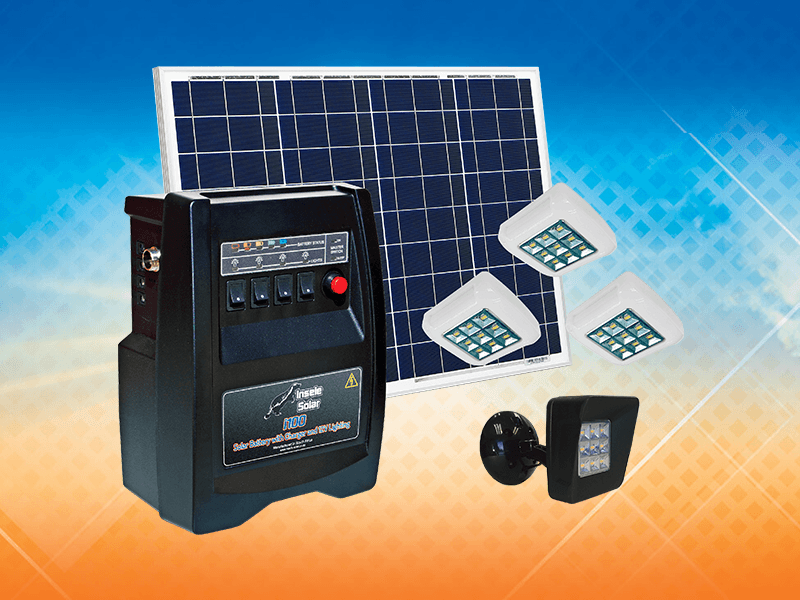

i100 3XWM 1XFL
Three wall-mounted lights, one outdoor floodlight and two USB ports.

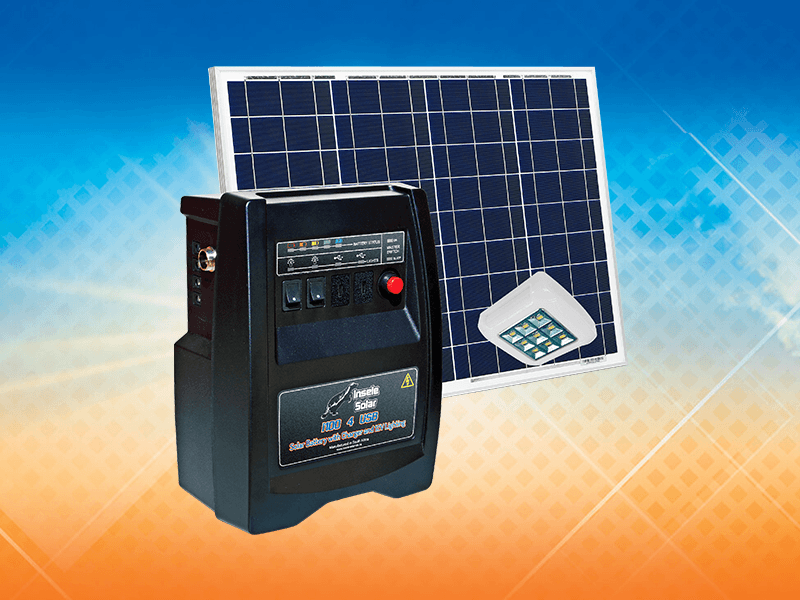

i100 4 USB
Two wall-mounted lights and four USB ports (four at 1A or two at 2A).
i100 4 USB Type-C
One wall-mounted light and four USB ports, two of them USB-C, for newer phones.
Please enquire for pricing and bulk orders.
Specifications
| Battery | 12V 8Ah lithium (LiPo), 96Wh |
|---|---|
| Solar panel | 40W monocrystalline or polycrystalline |
| Charge controller | MPPT, with low-battery cut-out |
| Lights | 2 wall-mounted LED lights as standard, supports up to 4 |
| Light power | 0.6W dim, 3.5W full |
| USB | 2 ports, 2A total (1 x 2A or 2 x 1A) |
| Input voltage | 18 to 22V DC |
| Output voltage | 12 to 14V DC |
| Light on a full charge | 10+ hours |
| Charge time | 3.5 to 4 hours |
| Days without sun | 2 to 5, depending on use |
| Unit size | 170 x 110 x 240mm |
| Weight | 6.4kg (unit only, without panel) |
| Warranty | 12 months from Microtronix Manufacturing. The battery is covered by the supplier’s warranty. |
Where The i100 Is Used
The i100 has been supplied to the Child Protection Society in Zimbabwe and to Great Plains Conservation’s Solar Mamas programme in Botswana.
i100 Questions
How long does the i100 run on a full charge?
10 hours or more. It runs longer on the dim setting and with fewer lights on.
How long does it take to charge?
3.5 to 4 hours in good sun. Face the panel north and keep it clear of shade from trees and buildings.
How many lights can the i100 run?
It comes with two and can run up to four.
Is the i100 the same as the i100 Mini?
Yes. The i100 Mini was renamed the i100.
Can I charge the i100 without the sun?
Yes. We supply an 18 to 20V 2A mains adapter, the same one that comes with the i100 EBL. Don’t connect any other power source to the input.
